Features
1. 20X optical zoom professional full HD camera , suitable for larger occasion
2. Up to 1080p 60fps, higher quality image
3. Simultaneous 3G-SDI, HDMI, IP Streaming video out, easily for professional video production
4. PoE(Power over Ethernet) supported
5. Double track 3.5mm linear input for audio
6. Auto focus, smart frame capture everyone
7. Support H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
8. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
9. High speed and silent pan/tilt, capture all the actions
10. Multiple control protocol and network protocol
11. Low-power sleep function
12. Ideal for church live streaming, video confrence, sports events, online education, ect.
Specifications

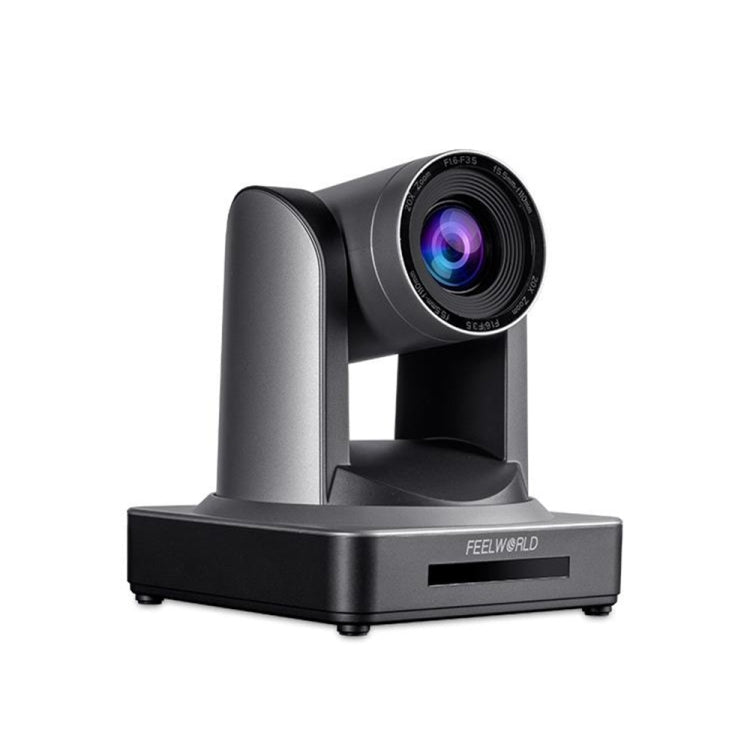

1. Model: POE20X
2. Sensor: 1/2.9 inch high quality CMOS sensor
3. Effective Pixels: 2.07 megapixel, 16:9
4. Output Resolutions: 720P 25/29.97/30/50/59.94/60fps, 1080p 25/30/29.97/30/50/59.94/60fps
5. View Angle: 3.3 degrees ~ 54.7 degrees
6. Focus Length: F=5.5 ~ 110mm
7. AV: F1.6 ~ F3.5
8. Optical Zoom: 20X
9. Illumination: 0.5 lux F1.8, AGC ON
10. DNR: 2D & 3D
11. White Balance: Auto / Manual / One Push /3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
12. Focus: Auto / Manual/ One Push Focus
13. Exposure: Auto / Manual
14. BLC: On/Off
15. WDR: OFF/Dynamic level adjustment
16. Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
17. SNR: Greater than 55dB

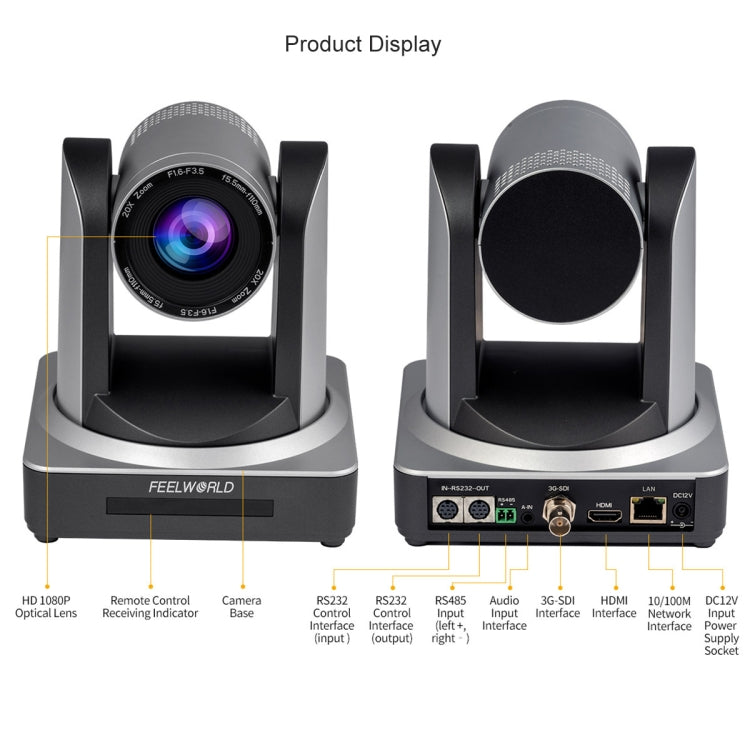

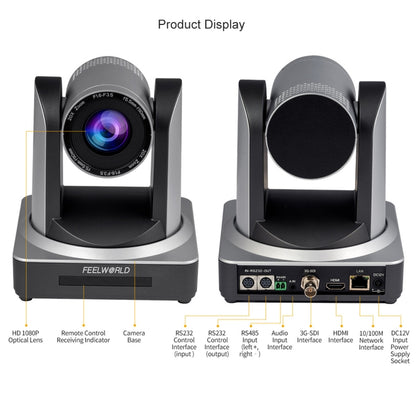

Input/output Interface
1. Video Interface: HDMI, 3G-SDI, LAN(support PoE)
2. Image Code Stream: Double stream outputs simultaneously
3. Video Compression Format: H.264, H.265
4. Audio Interface: Double track 3.5mm linear input
5. Audio Compression Format: AAC, MP3, G.711A
6. Control Interface: RS232 (IN/OUT), RS485
7. Control Protocol: VISCA/Pelco-D/Pelco-P
8. HD IP Interface: 100M IP port (10/100BASE-TX)
9. Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VSICA
10. Power Interface: HEC3800 outlet (DC12V)
PTZ Parameters
1. Pan Rotation: -170 degrees ~ + 170 degrees
2. Tilt Rotation: -30 degrees ~ +90 degrees
3. Pan Control Speed: 0.1 ~60 degrees/sec
4. Tilt Control Speed: 0.1~30 degrees /sec
5. Preset Speed: Pan: 60 degrees /sec, Tilt: 30 degrees/sec
6. Preset Number: 255 presets (10 presets via remote control)
Other Parameters
1. Input Voltage: 12V/1.5A
2. Power Consumption: 12W
3. Stored Temperature: -40 degree C ~ +70 degree C
4. Storage Humidity: 20%~90%
5. Working Temperature: -10 degree C~ +50 degree C
6. Working Humidity: 20%~80%
7. Dimension (W*H*D): 150mm x 150mm x 167.5mm
8. Unit Weight: 1.4kg

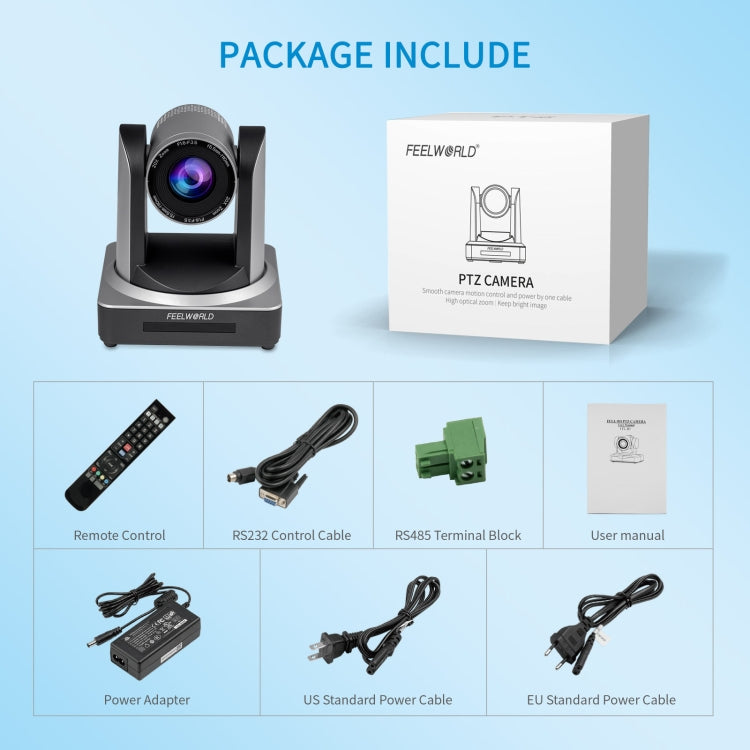

Package List
1. Video Camera x 1

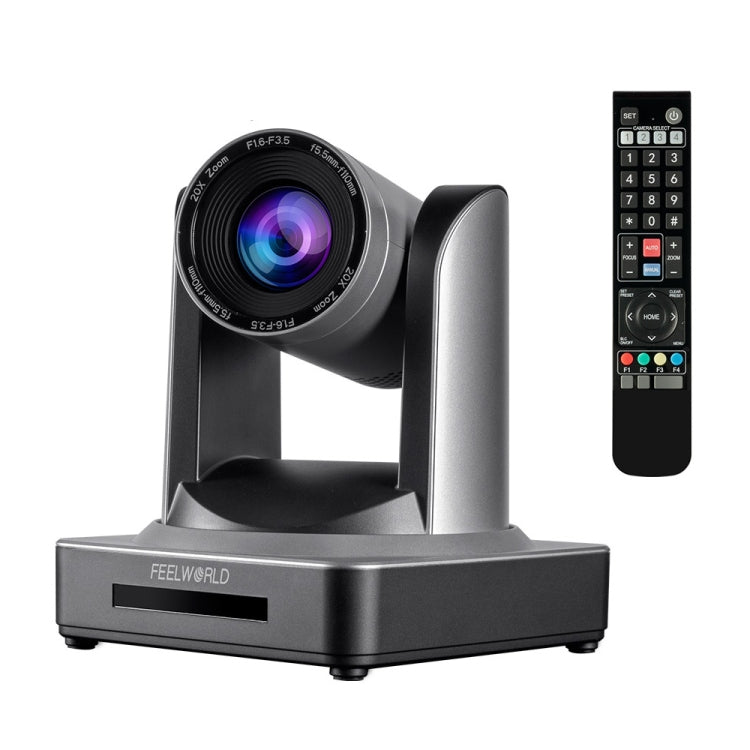

2. Remote Control x 1
3. RS232 Control Cable x 1
4. RS485 Terminal Block x 1
5. Power Adapter x 1
6. EU Standard Power Cable x 1
7. US Standard Power Cable x 1
8. Manual x 1
