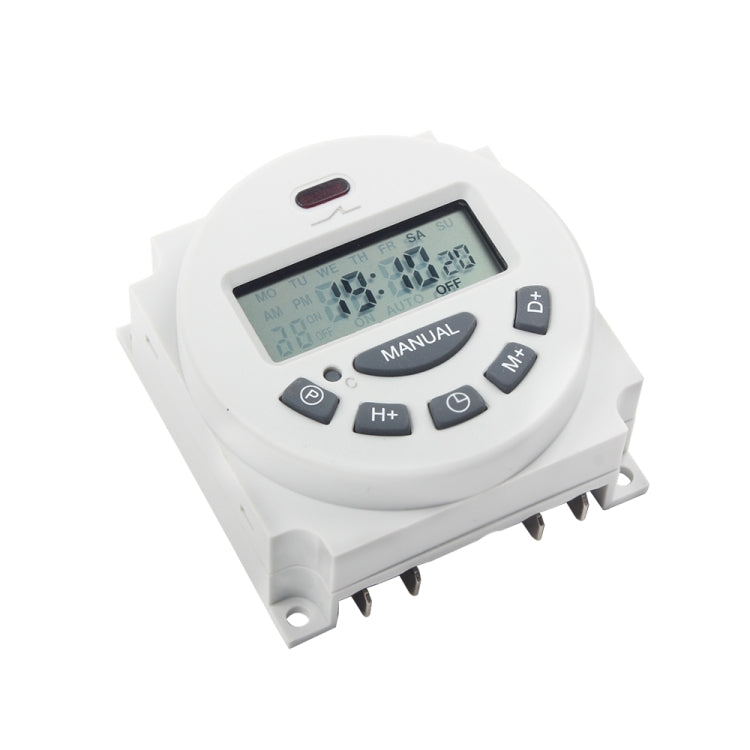

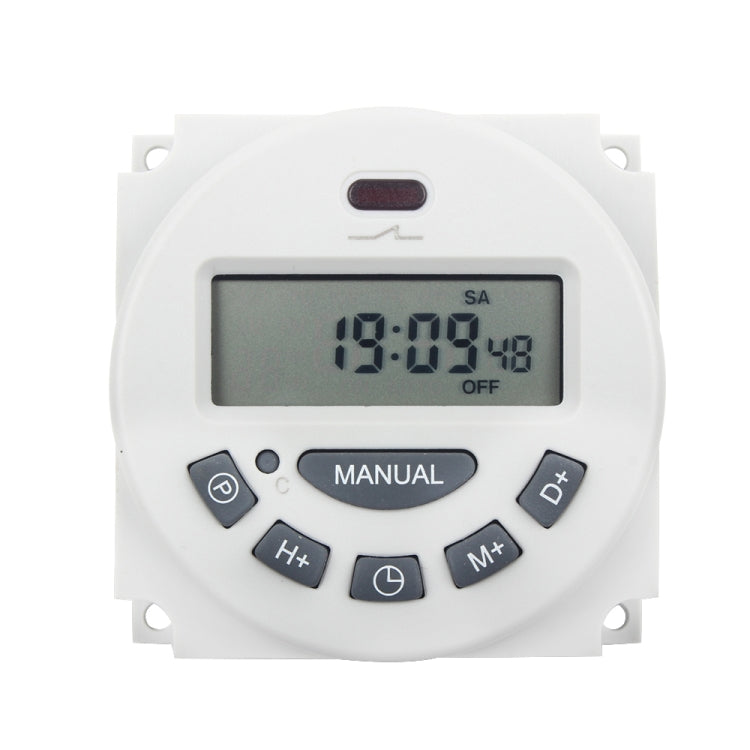

L701 Timing Microcomputer Time Control Switching

1. According to the time set by the user, the power of various electrical equipment can be automatically turned on and off
2. Scope of application: production equipment, street lights, light boxes, neon lights, warehouse exhaust and dehumidification, agricultural breeding, radio and television and other electrical power control products
3. The program supports 16 sets of switches per day, different periods of on-off can be set every day of a week, with program memory, one-time setting, long-term cycle
4. LED display, more accurate data
5. Soft rubber keys, easy to operate

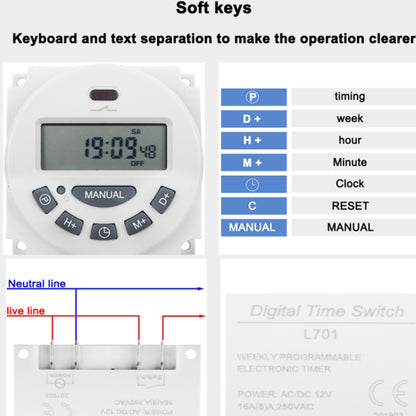

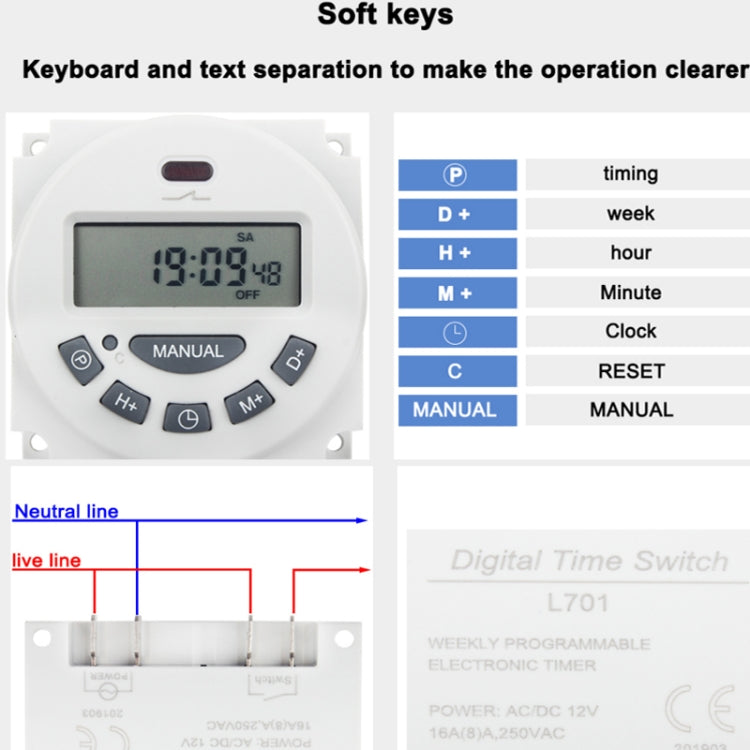

6. Clear wiring diagram, clearer to use
7. Power supply voltage: 220V/110V/24V/12V
8. Travel time error: 1 second/24 hours
9. Timing times: 16 times on and off
10. Display device: LCD
11. Power consumption: less than 2W
12. Control power: 16A
13. Internal battery: 1.2V 40mA rechargeable button battery
14. Timing range: 1 minute -168 hours
15. Ambient temperature: -25-65 degrees Celsius
